Z275 Galvanized Coil
The Z275 galvanized steel coil is kind of a double-sided galvanized carbon steel. This is produced by a metal coating process that passes cold rolled coils through a bath filled with molten zinc.
Contact Us

Product Description

Galvanized coil is a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. Galvanizing is a well-known and effective method to add a protective layer to prevent the exposed steel from being corroded by natural elements. Zinc not only acts as a barrier between the environment and the steel, but it also decomposes first to protect the underlying steel and extend its service life. Zinc is generally represented by Z. Z is the abbreviation of English Zinc. Z275 means that the galvanizing content is 275 grams per square meter, and so on. The number after Z indicates the average coating content at three points on both sides of the galvanized steel in grams per square meter.


Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.



Product Parameters

Product NameZ275 Galvanized Coil
Thickness0.12mm-3.5mm
Width600mm-1500mm
Length508mm/610mm, Support Customization
StandardAISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc LayerHot Galvanizing: 60-275g/m²
Pre-galvanized: 80-275g/m²



Chemical Composition

StandardGradeCSiMnPSTi
Forcold FormingChinese StandardDX51D+Z0.120.500.600.1000.0450.30
DX52D+Z0.120.500.600.1000.0450.30
DX53D+Z0.120.500.600.1000.0450.30
DX54D+Z0.120.500.600.1000.0450.30
DX56D+Z0.120.500.600.1000.0450.30
DX57D+Z0.120.500.600.1000.0450.30
Forcold FormingJapanese StandardSGCC0.150.500.800.0500.0300.025
SGCD1
SGCD2
0.12
0.10
0.50
0.50
0.60
0.45
0.040
0.030
0.030
0.030
0.025
0.025
SGCD30.080.500.450.0300.0300.025
SGCD40.060.500.450.0300.0300.025
For StructureJapanese StandardSGC3400.250.501.700.2000.0350.025
SGC400
SGC440
0.25
0.25
0.50
0.50
1.70
2.00
0.200
0.200
0.035
0.035
0.150
0.150
SGC4900.300.502.000.2000.0350.025
SGC5100.300.502.500.2000.0350.025
For StructureAISI StandardS220GD+Z0.200.600.700.1000.0450.025
S250GD+Z0.200.600.700.1000.0450.025
S280GD+Z0.200.600.700.1000.0450.025
S320GD+Z0.200.600.700.1000.0450.025
S350GD+Z0.200.600.700.1000.0450.150
S550GD+Z0.200.600.700.1000.0450.150



Mechanical Properties

GradeYield Strength MPa≥Tensile Strength MPa≥Elongation A%≥
DX51D Z/ZM/AZ/AM240-380270-50022
DX52D Z/ZM/AZ/AM140-300270-42026
DX53D Z/ZM/AZ/AM140-260270-38030
DX54D Z/ZM/AZ/AM120-220260-35036
S220GD Z/ZM/AM22030020
S250GD Z/ZM/AZ/AM25033019
S280GD Z/ZM/AM28036018
S300GD A/AM30038018
S320GD Z/ZM/AM32039017
S350GD Z/ZM/AZ/AM35042016
S450GD A/AM45048015
S550GD Z/ZM/AZ/AM550550-

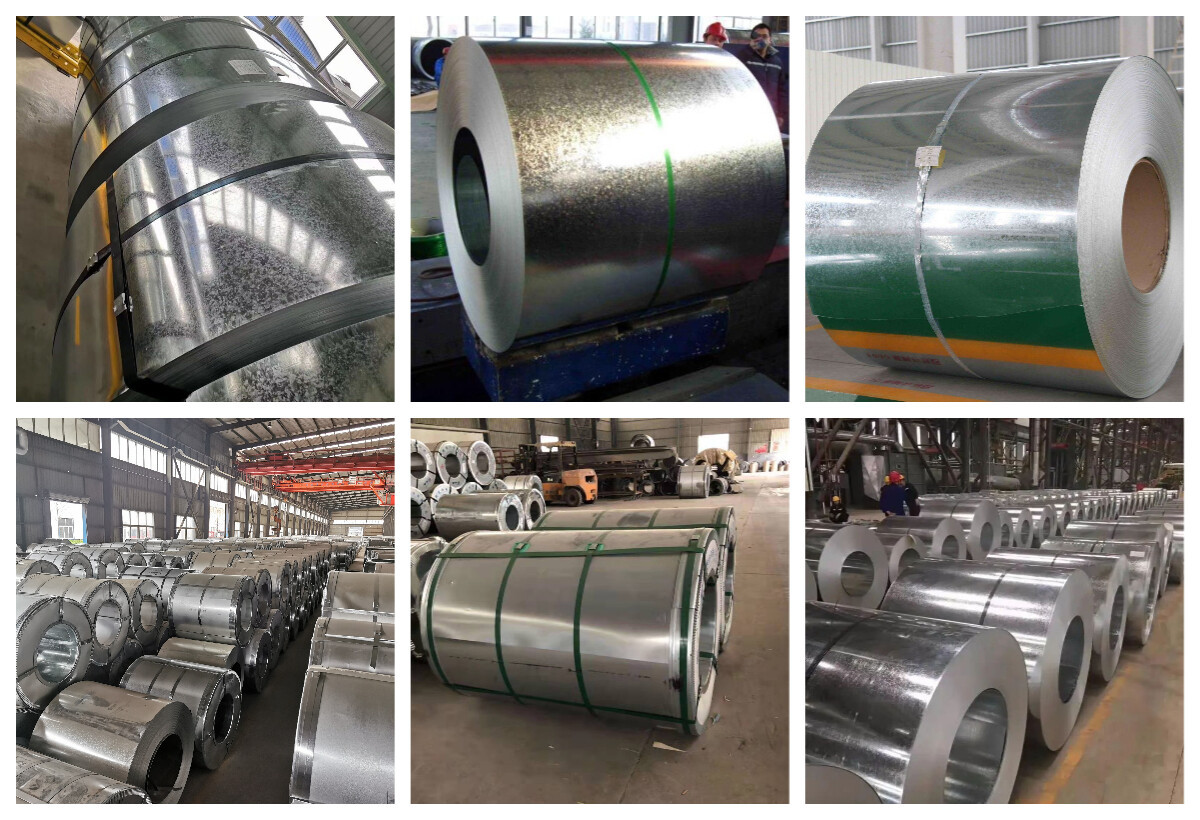

Product Show

下载 (14).jpg

Factory Workshop


Packing And Delivery

Customer Visits

FAQ

Q: What about your company ?
A: We are professional manufacturer for stainless steel.Galvanised Steel.Carbon steel.ColorCoated steel, and our company also is a very professional a trade company for steel products.wecan also provide a wide range of steel products.We have the expeirance of steel business formore than 10 years and exported to Mid East,South America,Southeast Asia,Africa,South andEast Asia etc.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What is your terms of payment:
A: 30% T/T deposite and 70% balance before shipment.
Q: What is the packing of goods?
A: Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for allkinds of transport,or as required
Q: What is your delivery time?
A: For stocks,we could transport the goods to loading port within 7 days after we received thedeposit;,For production,it usually takes about 15-30 days after receiving the deposite.Also maybeit will be delayed just the different quantities
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered bycustomer account.
Q: Do you accept the third party inspection?
A:Yes absolutely we accept
Q: Why should you buy from us not from other suppliers?
A: Integrating the superior resources of China's steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered tocustomers in a timely manner.
Q:How can you guarantee quality?
A: Always a pre-production sample before mass production;Always fnal inspection beforeshipment
